Beta-blocker and Calcium-channel blocker toxicity

Relevant agents

• Beta-blockers: Atenolol, metoprolol, propranolol, sotalol
• Cardioselective calcium-channel blockers: Verapamil and diltiazem

---

Effects on the ECG

A prolonged PR interval is an early sign of beta-blocker or calcium-channel blocker toxicity — even in the absence of significant bradycardia.

---

Specific Agents

Two beta-blockers have additional important toxic effects:

Propanolol:

• Propranolol behaves more like a tricyclic antidepressant in overdose than a beta-blocker, due to its blockade of myocardial and CNS fast sodium channels
• Propranolol toxicity is associated with QRS widening and a positive R’ wave in aVR (signs of sodium channel blockade), which portend the onset of coma, seizures, hypotension and ventricular arrhythmias

Sotalol

---

ECG Examples

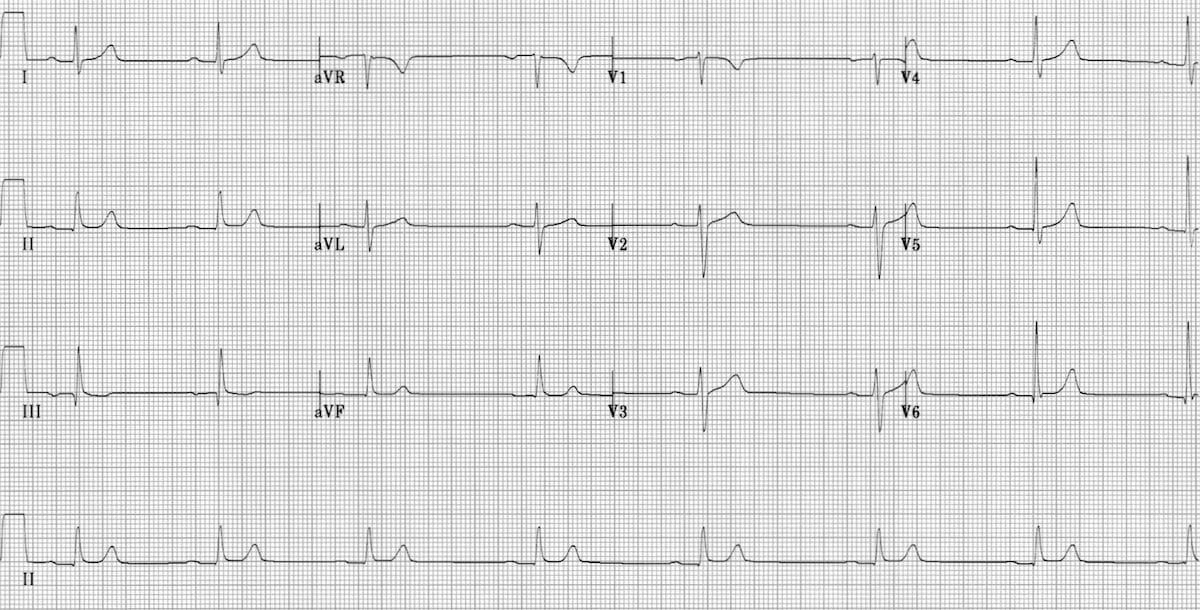

Example 1

Sinus bradycardia with 1st-degree AV block:

• Heart rate 45 bpm
• PR interval 240 ms

This type of ECG pattern is commonly seen in the early stages of beta-blocker / calcium-channel blocker poisoning.

---

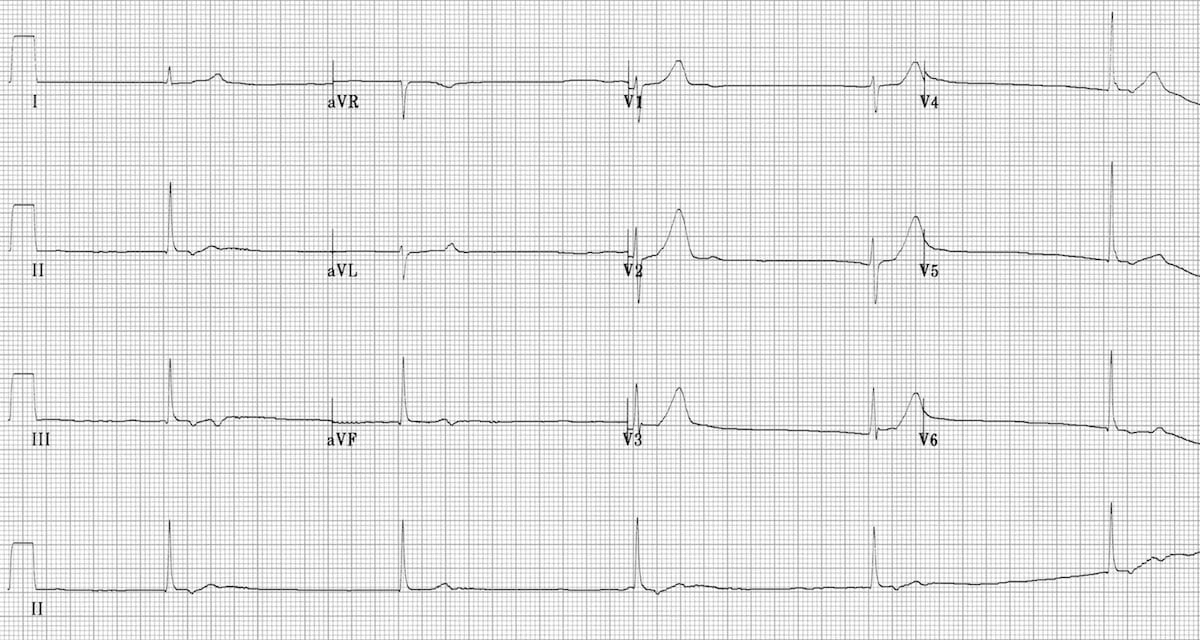

Example 2

Slow junctional rhythm:

• Regular rhythm at 30 bpm
• Narrow QRS complexes
• No visible P waves

---

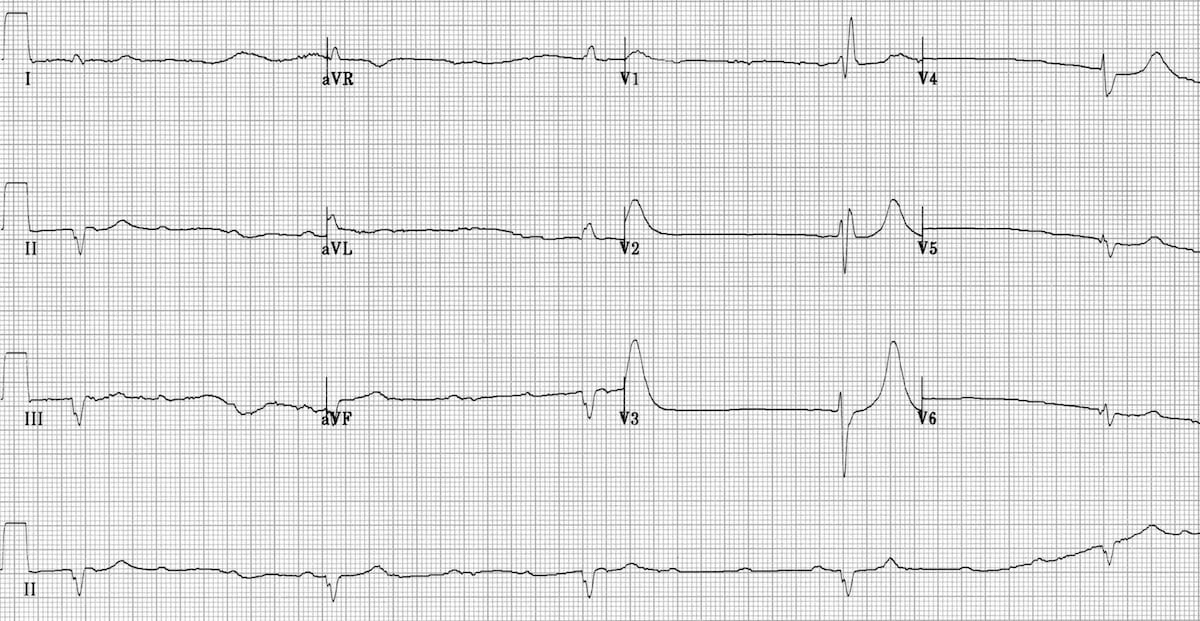

Example 3

Complete heart block:

• Sinus rhythm – P waves occur at a rate of around 90 bpm
• 3rd degree AV block – there is no relationship between the P waves and QRS complexes
• Slow escape rhythm (30 bpm) with a RBBB morphology – this could be either a ventricular escape rhythm or a slow junctional rhythm with RBBB

---

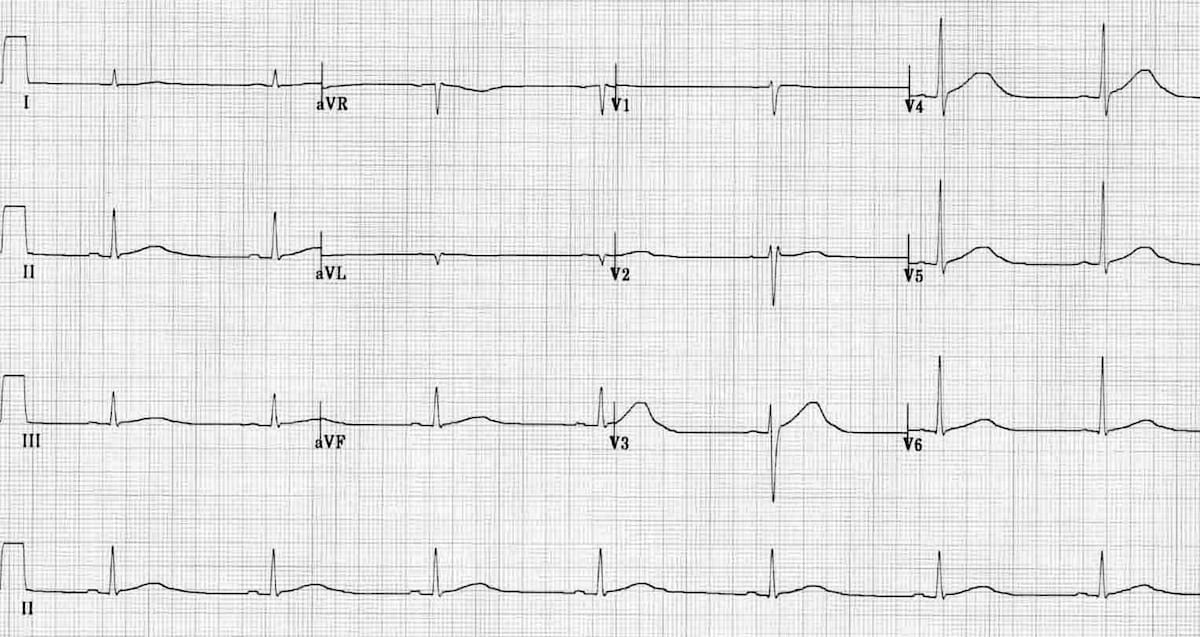

Example 4

This ECG demonstrates the key features of sotalol overdose:

• Sinus bradycardia
• Very long QT interval (~600ms)

NB. This patient is at significant risk of Torsades de Pointes.

---

Example 5

This ECG demonstrates some of the key features of propranolol overdose:

NB. Normally the heart rate would be slower than this in a propranolol overdose (this is actually an ECG of flecainide poisoning — another sodium-channel blocking agent).

---

---
