Biventricular Hypertrophy
Hypertrophy of both the left and right ventricles.
The ECG has a low sensitivity for the diagnosis of biventricular hypertrophy (BVH), as the opposing left and right ventricular forces tend to cancel each other out.
- There may be signs of both Left Ventricular Hypertrophy (LVH) and Right Ventricular Hypertrophy (RVH) on the same ECG – e.g. positive diagnostic criteria for LVH with some additional features suggestive of RVH.
- The Katz-Wachtel phenomenon – large biphasic QRS complexes in V2-5. This is the classic ECG pattern of BVH, most commonly seen in children with congenital heart disease e.g. ventricular septal defect (VSD).
In the presence of LVH – Additional signs indicating RVH include
- Right atrial enlargement.
- Right axis deviation.
- Tall biphasic QRS complexes in multiple leads.
- Deep S waves in V5-6.
In the presence of RVH – Additional signs indicating LVH include:
- Tall R waves and deep S waves in V2-5.
- QRS amplitude > 50 mm.
- Large biphasic QRS complexes (tall R waves + deep S waves) in V2-5.
ECG Examples
Example 1
Biventricular hypertrophy:
- Large biphasic QRS complexes in V2-5.
- LVH: Voltage criteria for LVH (S V2 + R V5 = 35 mm, R aVL > 11 mm) with signs of LV strain (T-wave inversion in V4-6).
- Persistent S waves in V5-6 suggestive of associated RVH.
Example 2
Biventricular hypertrophy
- Katz-Wachtel phenomenon — biphasic QRS complexes in the precordial leads.
- Enormous voltages — QRS amplitude > 50 mm in V2.
- Easily meets voltage criteria for LVH and there are associated features of LV strain (ST depression and T-wave inversion in V4-6).
- Signs of right atrial enlargement — peaked P waves in lead II.
Example 3

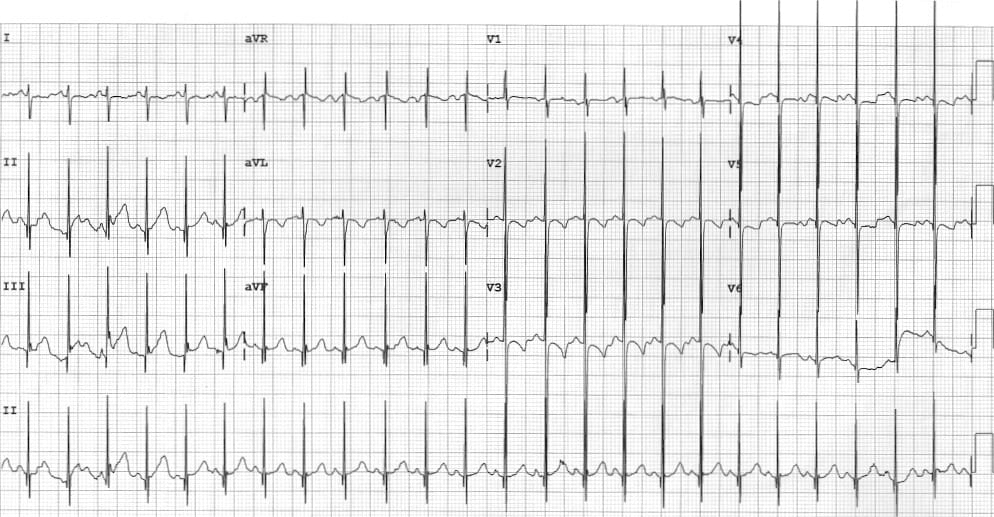

Biventricular hypertrophy in a child with VSD:
- Katz-Wachtel phenomenon – large biphasic QRS complexes in V2-5.
- Enormous QRS voltages.
- Right axis deviation and T-wave inversion in V1-3 are normal findings on the paediatric ECG.
