Dilated Cardiomyopathy (DCM)

There are no specific ECG features unique to DCM, however the ECG is usually NOT normal.

Common ECG associations with DCM

• The most common ECG abnormalities are those associated with atrial and ventricular hypertrophy — typically, left-sided changes are seen but there may be signs of biatrial or biventricular hypertrophy
• Interventricular conduction delays (e.g. LBBB) occur due to cardiac dilatation
• Diffuse myocardial fibrosis may lead to reduced voltage QRS complexes, particularly in the limb leads. There may be a discrepancy of QRS voltages with signs of hypertrophy in V4-6 and relatively low voltages in the limb leads
• Abnormal Q waves are most often seen in leads V1 to V4 and may mimic the appearance of a myocardial infarction (“pseudoinfarction” pattern)

---

Dilated Cardiomyopathy Overview

Dilated cardiomyopathy (DCM) is a myocardial disease characterised by ventricular dilatation and global myocardial dysfunction (ejection fraction < 40%).

• Patients usually present with symptoms of biventricular failure, e.g. fatigue, dyspnoea, orthopnoea, ankle oedema
• Associated with a high mortality (2-year survival = 50%) due to progressive cardiogenic shock or ventricular dysrhythmias (sudden cardiac death)

---

Causes of Dilated Cardiomyopathy

Can be divided into ischaemic and non-ischaemic.

Ischaemic

• Dilated cardiomyopathy commonly occurs following massive anterior STEMI due to extensive myocardial necrosis and loss of contractility

---

Non-ischaemic

• Most cases are idiopathic
• Up to 25% are familial (primarily autosomal dominant, some types are X-linked)

---

A very small proportion may occur with:

• Viral myocarditis (coxsackie B / adenovirus)
• Alcoholism
• Toxins (e.g. doxorubicin)
• Autoimmune disease
• Pregnancy (peripartum cardiomyopathy)

---

ECG Examples

Example 1

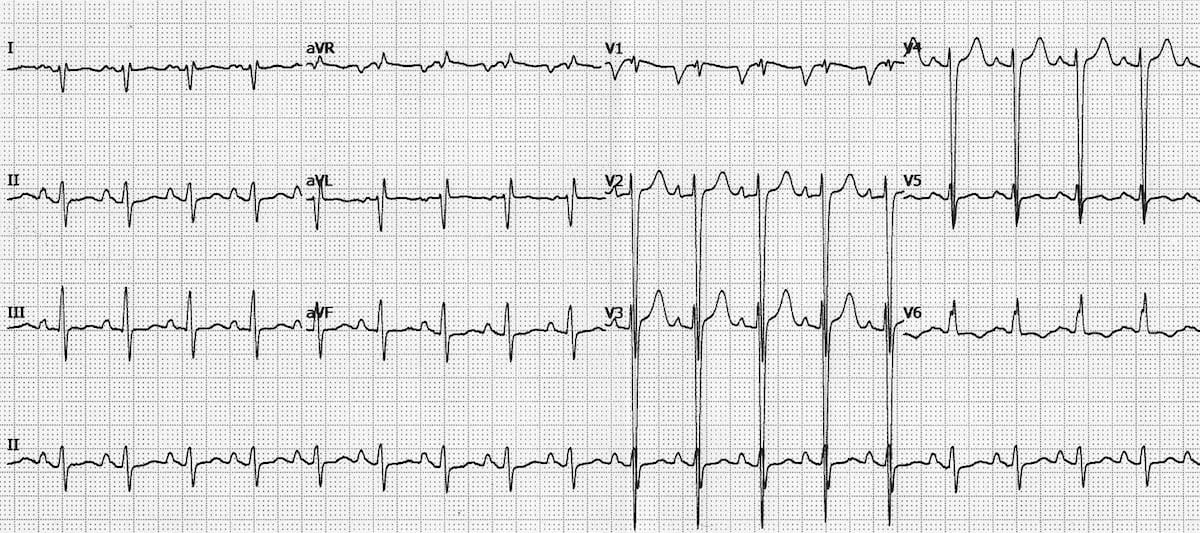

Ischaemic cardiomyopathy:

This patient had four-chamber dilatation on echocardiography with severe congestive cardiac failure (awaiting cardiac transplantation).

---

Example 2

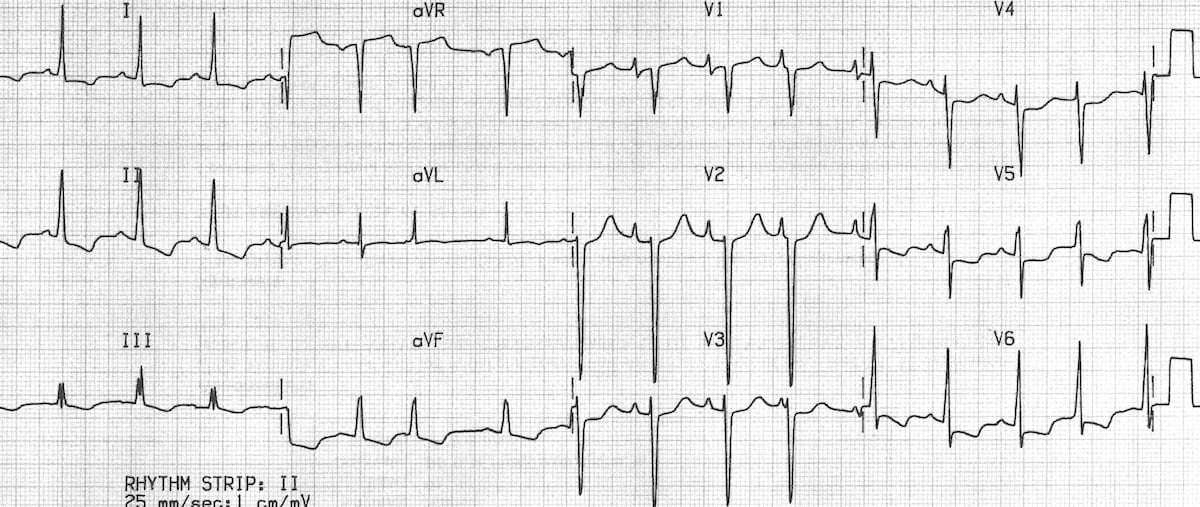

Idiopathic dilated cardiomyopathy:

• There is evidence of left ventricular hypertrophy with large precordial voltages and an LV strain pattern in leads with a dominant R wave (I, II, V6)
• There is also evidence of biatrial enlargement in V1 with a peaked initial portion of the P wave (RAE) followed by a deep terminal negative portion (LAE)
• The changes of right ventricular hypertrophy are masked by left ventricular dominance; however, this patient had four-chamber dilatation on echocardiography

---

Example 3

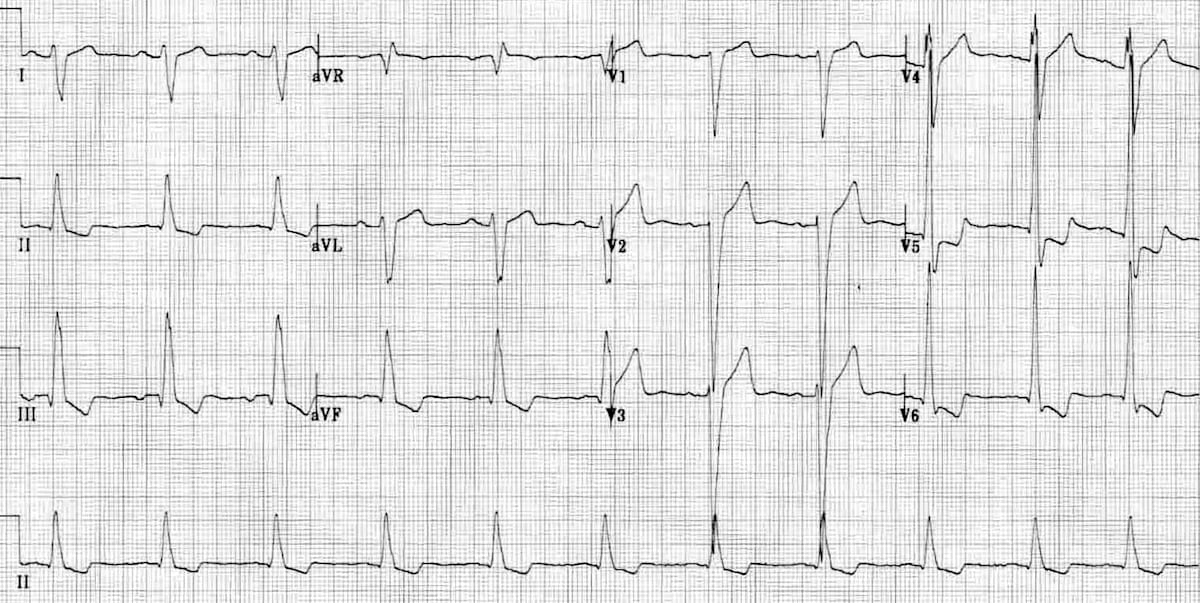

Dilated cardiomyopathy:

• There is marked left ventricular hypertrophy with repolarisation abnormality (LV “strain” pattern) in V5-6
• LV dilatation has produced an interventricular conduction delay mimicking LBBB — however, this is not LBBB as the morphology is not typical and there are small Q waves in V5-6 (the presence of Q waves in V6 rules out LBBB)
• There are some signs of left atrial enlargement — leftward deviation of the P wave axis (positive P waves in I and aVL, inverted in III and aVF) and prolongation of the terminal portion of the P wave in V1
• Right axis deviation in the presence of LVH suggests the possibility of biventricular enlargement
• The widespread downsloping ST depression may be due to LVH (= “appropriate discordance”) or digoxin effect (a commonly used mediation in congestive cardiac failure)

---

Example 4

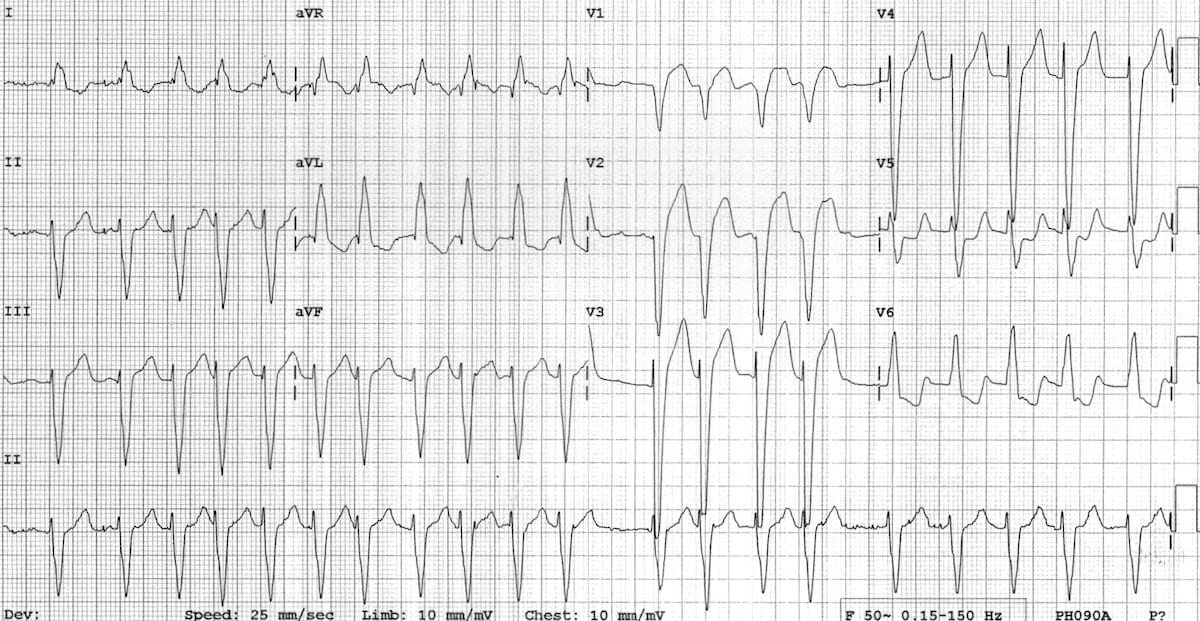

Dilated cardiomyopathy:

• Atrial fibrillation with LBBB is another ECG pattern commonly seen in DCM

---

---
