Hypercalcaemia ECG changes

ECG Changes in Hypercalcaemia

---

Hypercalcaemia Overview

• Normal serum corrected calcium = 2.1 – 2.6 mmol/L
• Mild hypercalcaemia = 2.7 – 2.9 mmol/L
• Moderate hypercalcaemia = 3.0 – 3.4 mmol/L
• Severe hypercalcaemia = greater than 3.4 mmol/L

---

Causes of Hypercalcaemia

• Hyperparathyroidism (primary and tertiary)
• Myeloma
• Bony metastases
• Paraneoplastic syndromes
• Milk-alkali syndrome
• Sarcoidosis
• Excess vitamin D (e.g. iatrogenic)

---

ECG Examples

Example 1

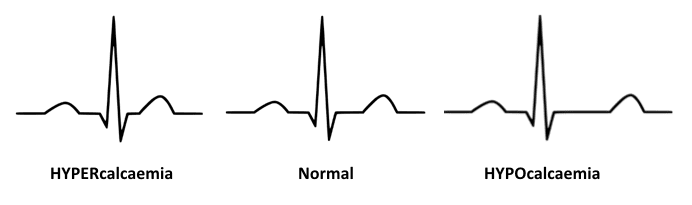

Hypercalcaemia

---

Example 2

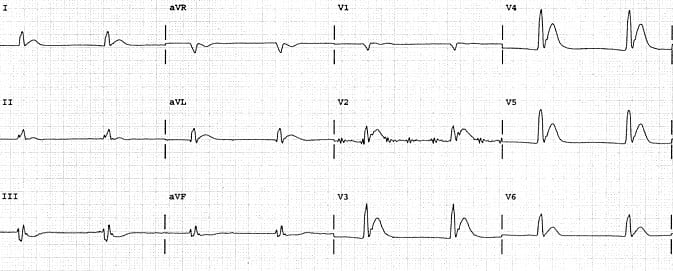

• Hypercalcaemia causing marked shortening of the QT interval (260ms).
• Image originally featured in Kyuhyun (K.) Wang’s excellent Atlas of Electrocardiography

---

Example 3

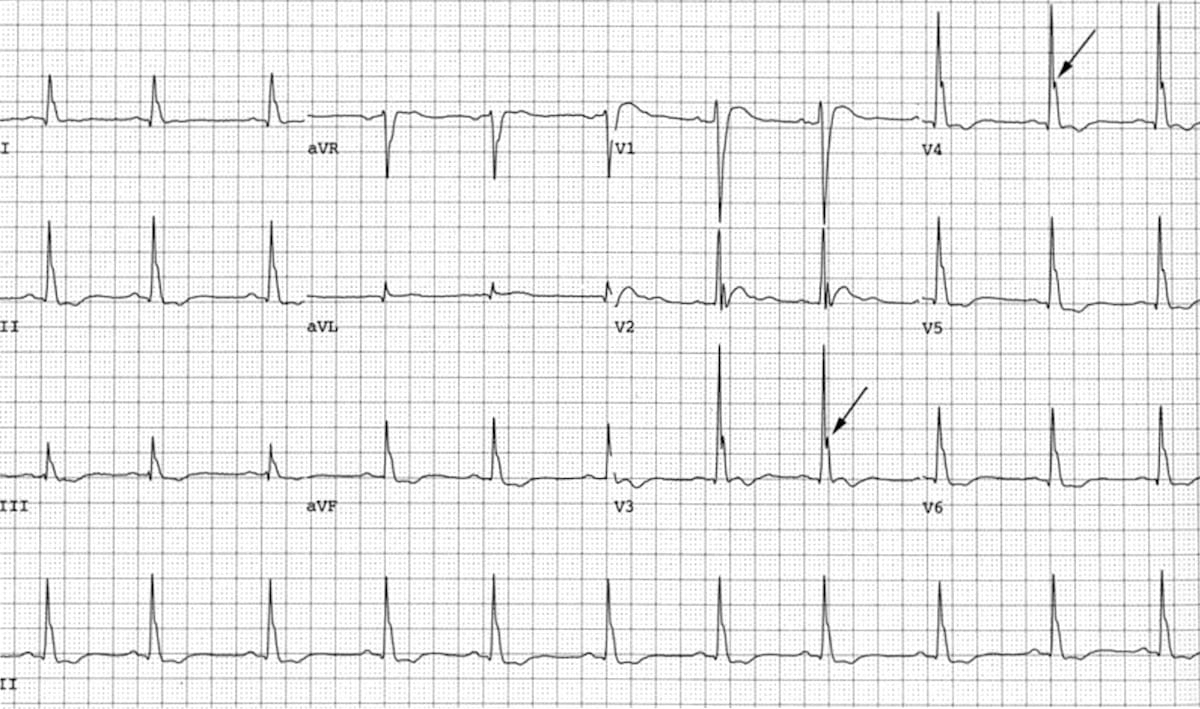

This is the ECG of a 41-year old man with a parathyroid adenoma who presented to ED critically unwell with a serum calcium of 6.1 mmol/L. He suffered a VF arrest not long after this ECG was taken. The ECG shows:

• Bizarre-looking QRS complexes
• Very short QT interval
• J waves = notching of the terminal QRS, best seen in lead V1

Many thanks to Dr James Hayes, FACEM, for this fantastic ECG!

---

---
