Left Posterior Fascicular Block (LPFB)

ECG Criteria

Note: The diagnosis of LFPB can only be made after excluding other causes of RAD. There should be:

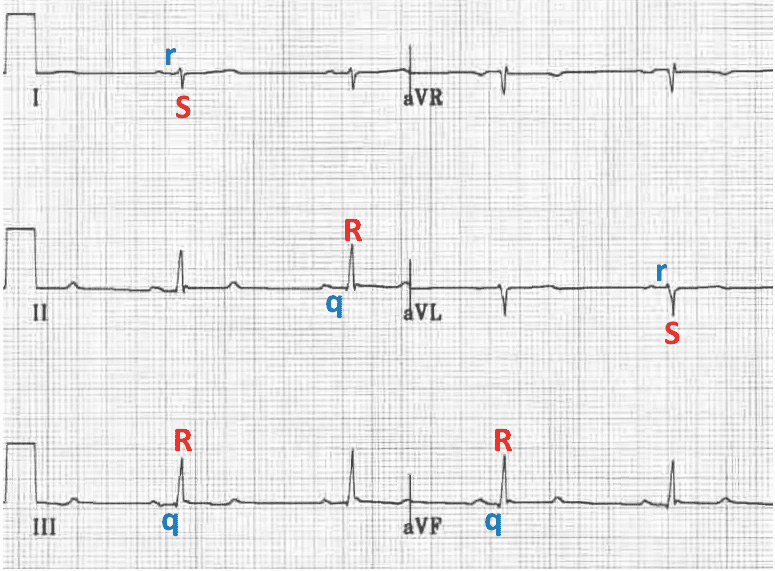

Typical ECG of LPFB, demonstrating slightly prolonged QRS duration, prolonged R wave peak time in aVF, and:

• rS complexes in leads I and aVL, with small R waves and deep S waves
• qR complexes in leads II, III and aVF, with small Q waves and tall R waves
• Right Axis Deviation (RAD): Leads II, III and aVF are POSITIVE; Leads I and aVL are NEGATIVE

Associated features include:

• QRS duration normal or slightly prolonged (80-110ms)
• Increased QRS voltage in limb leads

---

Electrophysiology

In LPFB, impulses are conducted to the left ventricle (LV) via the anterior fascicle, which inserts into the upper, lateral wall of the LV along its endocardial surface.

• Depolarisation spreads from endocardium to epicardium and thus the initial vector is directed upwards and leftwards, towards lateral leads. This produces small R waves in I and aVL, and small Q waves in inferior leads (II, III, aVF)
• The major wave of depolarisation then spreads along the free LV wall in a downward and rightward direction, producing tall R waves in inferior leads and deep S waves in the lateral leads.
• This process takes up to 20 milliseconds longer than simultaneous conduction via both fascicles, resulting in a slight widening of the QRS.
• Because impulses reaches the inferior leads later than normal, there is an increased R wave peak time in aVF (time from onset of QRS to peak of R wave)

Sequence of conduction in LPFB

1. YELLOW line: Impulses are conducted to the left ventricle only via the anterior fascicle
2. RED arrow: Initial depolarisation vector is directed towards lateral leads
3. BLUE arrow: Major depolarisation vector, which is slightly delayed, is directed towards inferior leads

---

Example ECG

• As above, there are rS complexes in leads I and aVL, and qR complexes in leads II, III and aVF

---

Right Axis Deviation (RAD)

• Leads II, III and aVF are POSITIVE;
• Leads I and aVL are NEGATIVE

---

Prolonged R-wave peak time

• R-wave peak time: Time from onset of the QRS to the peak of the R wave in aVF > 45 ms

---

Handy Tips

• LPFB is much less common than LAFB, as the broad bundle of fibres that comprise the left posterior fascicle are relatively resistant to damage when compared with the slim single tract that makes up the left anterior fascicle.
• It is extremely rare to see LPFB in isolation. It usually occurs along with RBBB in the context of a bifascicular block.
• Do not be tempted to diagnose LPFB until you have ruled out more significant causes of right axis deviation: Example: acute pulmonary embolus; tricyclic overdose; lateral STEMI; and right ventricular hypertrophy.

---

ECG Examples of LPFB

Example 1

---

Example 2

---

Example 3

RBBB with LPFB

• RBBB with wide QRS, slurred S wave in lead I and slurred R in V1.
• Right axis deviation (dominant negative deflection in leads I and aVl) with dominant positive deflection in aVf along with rS pattern in lead I and qR pattern leads III and aVf, suggesting left posterior fascicular block.

---

Example 3b

RBBB with LPFB and RAD

---
