Normal Sinus Rhythm

Overview of normal sinus rhythm (NSR)

• The default heart rhythm
• Pacemaking impulses arise from the sino-atrial node and are transmitted to the ventricles via the AV-node and His-Purkinje system
• This results in a regular, narrow-complex heart rhythm at 60-100 bpm

---

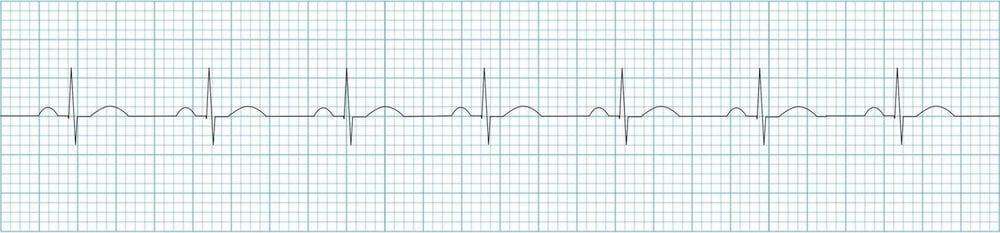

ECG features of normal sinus rhythm

---

Normal heart rates in children

• Newborn: 110 – 150 bpm
• 2 years: 85 – 125 bpm
• 4 years: 75 – 115 bpm
• 6 years+: 60 – 100 bpm

---

Variations on sinus rhythm

• Sinus tachycardia = sinus rhythm with resting heart rate > 100 bpm in adults, or above the normal range for age in children
• Sinus bradycardia = sinus rhythm with resting heart rate < 60 bpm in adults, or below the normal range for age in children
• Sinus arrhythmia = sinus rhythm with a beat-to-beat variation in the P-P interval (the time between successive P waves), producing an irregular ventricular rate

---

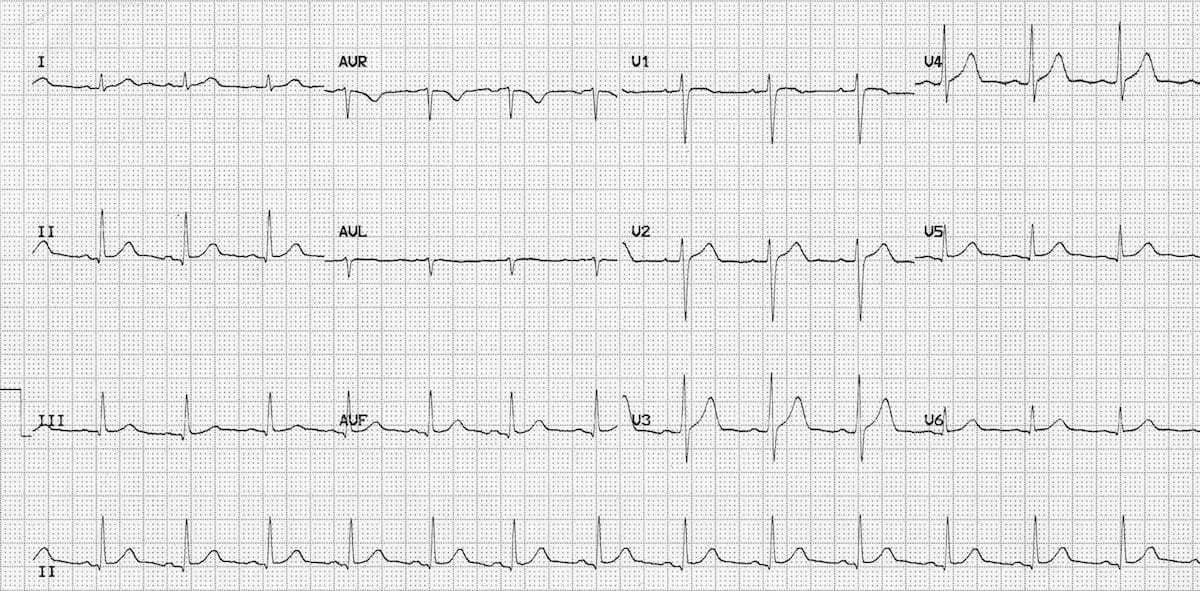

Example ECG

Normal sinus rhythm in a healthy 18-year old male:

• Regular rhythm at 84 bpm.
• Normal P wave morphology and axis (upright in I and II, inverted in aVR)
• Narrow QRS complexes (< 100 ms wide)
• Each P wave is followed by a QRS complex
• The PR interval is constant

---

---

Advanced Reading

Online

Textbooks

• Zimmerman FH. ECG Core Curriculum. 2023
• Mattu A, Berberian J, Brady WJ. Emergency ECGs: Case-Based Review and Interpretations, 2022
• Straus DG, Schocken DD. Marriott’s Practical Electrocardiography 13e, 2021
• Brady WJ, Lipinski MJ et al. Electrocardiogram in Clinical Medicine. 1e, 2020
• Mattu A, Tabas JA, Brady WJ. Electrocardiography in Emergency, Acute, and Critical Care. 2e, 2019
• Hampton J, Adlam D. The ECG Made Practical 7e, 2019
• Kühn P, Lang C, Wiesbauer F. ECG Mastery: The Simplest Way to Learn the ECG. 2015
• Grauer K. ECG Pocket Brain (Expanded) 6e, 2014
• Surawicz B, Knilans T. Chou’s Electrocardiography in Clinical Practice: Adult and Pediatric 6e, 2008
• Chan TC. ECG in Emergency Medicine and Acute Care 1e, 2004

---
