What is the QRS-T wave angle?

Although the term cardiac axis is accepted to reflect QRS axis corresponding to ventricular depolarisation, we can also measure separate P and T wave axes. Specifically, the T wave axis corresponds to the axis of ventricular repolarisation. The angle difference between these two axes is referred to as the QRS-T wave angle. This angle is usually narrow in secondary repolarisation abnormalities such as BER (less than 45 degrees), and widens in ischaemia or infarction.

QRS-T wave angle can help differentiate primary and secondary repolarisation abnormalities

Contrary to common belief, T wave inversion in aVL can be a normal finding. The QRS-T wave angle can assist in differentiating this.

ST segment and T wave changes represent ventricular repolarisation abnormalities. However, as we know, there are “normal variant” ventricular repolarisation abnormalities such as BER. These secondary repolarisation abnormalities produce concordant ST segment and T wave changes with a narrow QRS-T wave angle. On the other hand, T wave inversion as a result of primary repolarisation abnormalities such as ischaemia or infarction produces a widened QRS-T wave angle.

In our patient above, the QRS axis is about +75 degrees and T wave axis +110 degrees, producing a QRS-T wave angle of 45 degrees with resultant concordance in aVL. This suggests T-wave inversion in aVL is simply normal repolarisation secondary to position of the heart.

Conversely, a wide angle between QRS and T wave axes cannot be explained without a primary pathology. In the absence of conduction delay (e.g. bundle branch block), a positive QRS complex in aVL with concurrent T wave inversion is likely to be an abnormal finding, and suggests pathological T wave inversion due to ischaemia.

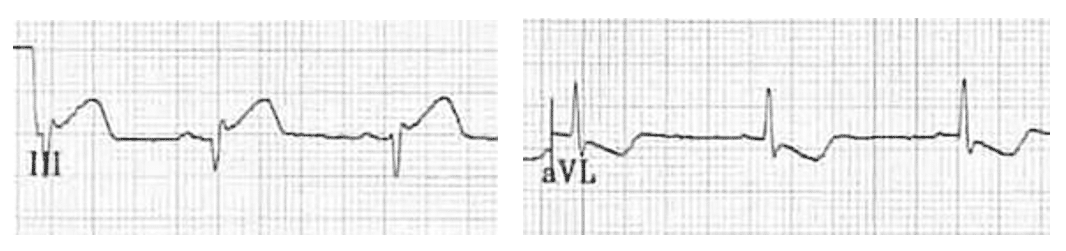

Take a look at the QRS-T wave angle in this example of inferior MI

Evolving inferior occlusion myocardial infarction (OMI):

  • Hyperacute T waves in inferior leads, with evolving ST elevation and Q wave formation
  • Reciprocal ST depression and T wave inversion in aVL follows a normal QRS complex, with a wide QRS-T wave angle
  • QRS axis is -15 degrees, and T wave axis +75 degrees, giving a QRS-T wave angle of 90 degrees

ST elevation and hyperacute T waves in ischaemia: “Proportion is everything”

Note the difference in inferior QRS complex amplitude between our with patients with BER and inferior OMI. When assessing the magnitude of ST elevation and size of “hyperacute” T waves in suspected infarction, the size of the preceding QRS complex must be taken into account. Let’s compare our two examples:

ECG 1: BER

Benign Early Repolarisation: Low ST/QRS ratio and narrow QRS-T wave angle. Large T waves are proportional in size to preceding QRS complex
  • Large amplitude QRS complexes, reaching 25mm in frontal leads
  • Maximal ST elevation is 2mm, giving an ST/QRS ratio of 8%
  • Inferior T waves are large amplitude at 6mm but appear in proportion to the preceding QRS complex (this ratio can also be assessed)
  • All ST segment changes and T waves are concordant to the preceding QRS complex, yielding a narrow QRS-T wave angle

ECG 2: Inferior OMI

Inferior OMI: High ST/QRS ratio and wide QRS-T wave angle. T waves tower over preceding QRS complex
  • Maximal frontal QRS amplitude is 8mm in lead I
  • Maximal ST elevation is also 2mm, this time with an ST/QRS ratio of 25%
  • Inferior T waves tower are similar amplitude at 5mm, but appear to tower over the preceding QRS complex. Associated loss of R wave height inferiorly produces a widened QRS-T wave angle

What about the inferior Q waves?

These are simply a result of orientation once again. In the most common “normal” ECG, we see small Q waves in V5-6 that result from normal left to right depolarisation of the interventricular septum. If the heart is more vertically orientated, inferior leads, in particular II and aVF, will fall at an angle of 90 degrees or more to this depolarisation vector with resultant small Q waves. Their small amplitude and narrow width are not concerning for infarction Q waves.

  • T wave inversion in aVL can be a normal finding. The QRS-T wave angle can assist in differentiating primary versus secondary repolarisation abnormalities
  • There is no single criteria for diagnosing BER in the presence of ST elevation. Large voltage QRS complexes, a low ST-QRS ratio, and a narrow QRS-T wave angle here point towards a benign cause in this young patient.
  • The degree of ST elevation and “hyperacute” nature of T waves should be measured in proportion to the preceding QRS complex. Wide, bulky T waves that tower over low voltage preceding QRS complexes suggest evolving infarction
