Low QRS Voltage

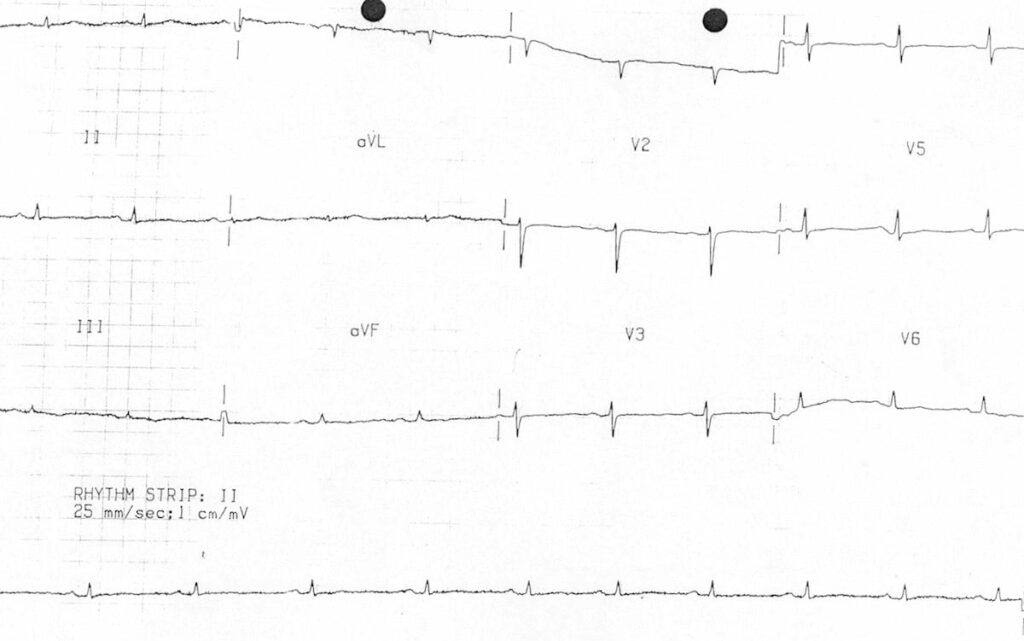

Diagnostic criteria

---

Mechanisms

Low voltage is produced by:

• The “damping” effect of increased layers of fluid, fat or air between the heart and the recording electrode
• Loss of viable myocardium
• Diffuse infiltration or myxoedematous involvement of the heart

Causes

The most important cause is massive pericardial effusion, which produces a triad of:

• Low voltage
• Tachycardia
• Electrical alternans

Patients with this triad need to be immediately assessed for clinical or echocardiographic evidence of tamponade.

Other causes of low voltage include:

---

ECG Examples

Example 1

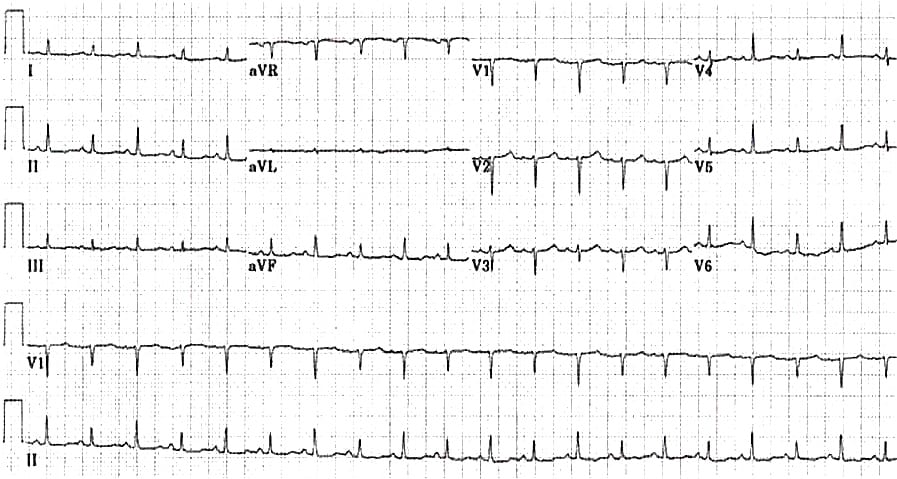

Massive Pericardial Effusion:

---

Example 2

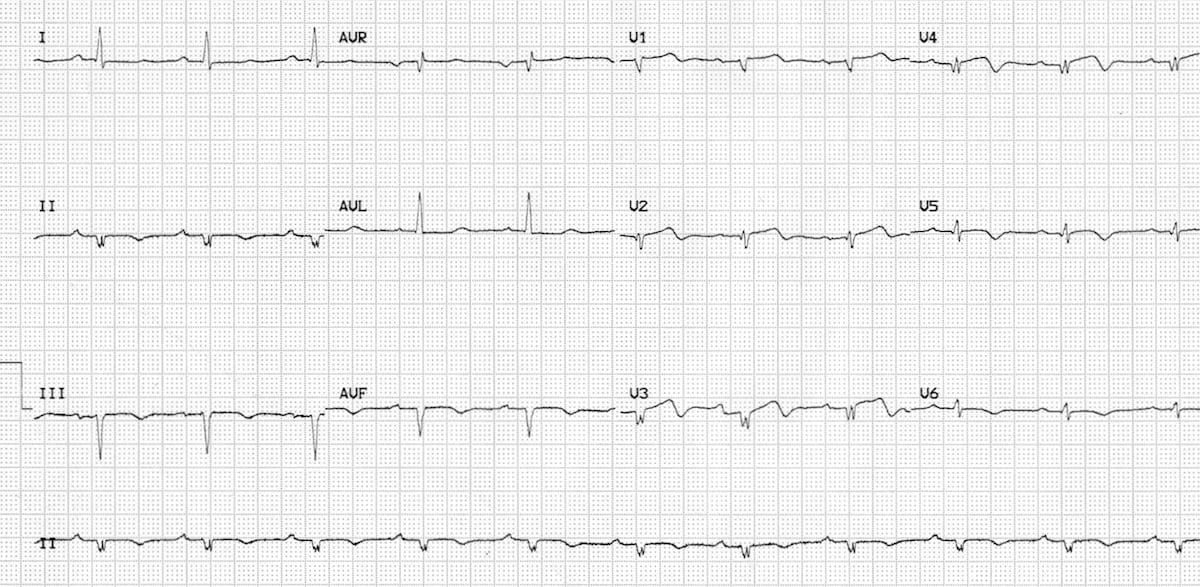

Prior Massive Anterior MI:

• Low QRS voltage in V1-6. This diffuse loss of R wave height suggests extensive myocardial loss from a prior anterior MI.
• There is also biphasic anterior T waves (Wellens syndrome) indicating new critical occlusion of the LAD artery

---

Example 3

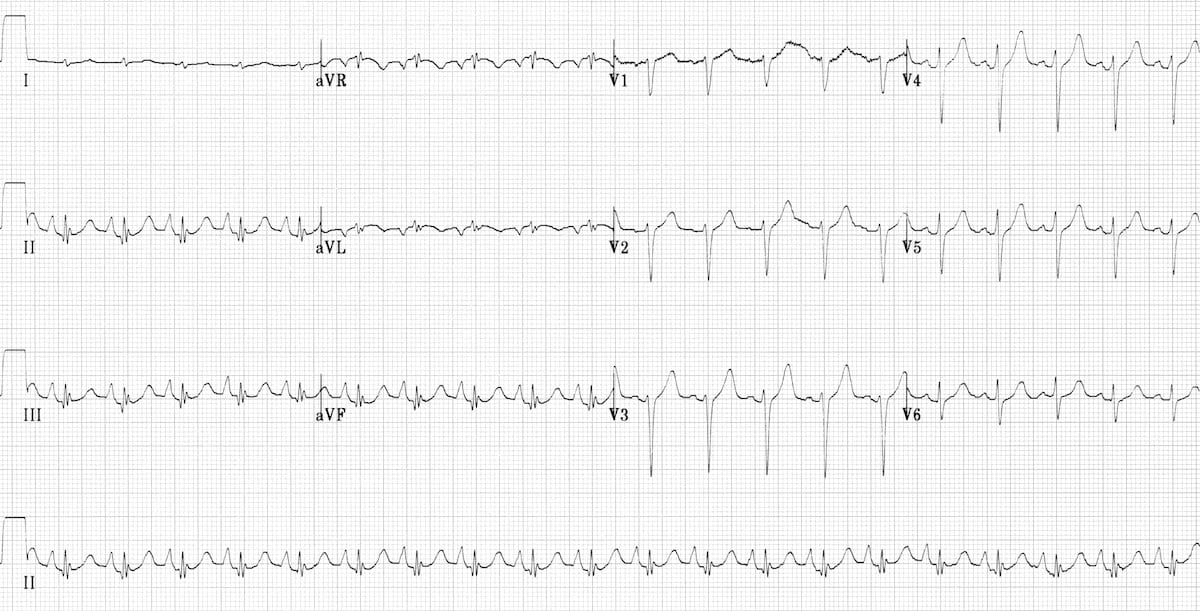

Emphysema:

• Low voltages in the limb leads is classically seen in patients with emphysema.
• Other assocaited ECG features of emphysema include:
  • Right axis deivation
  • Peaked P waves (P pulmonale)
  • Clockwise rotation (persistent S wave in V6)

---

---
