The Q Wave

A Q wave is any negative deflection that precedes an R wave

• The Q wave represents the normal left-to-right depolarisation of the interventricular septum

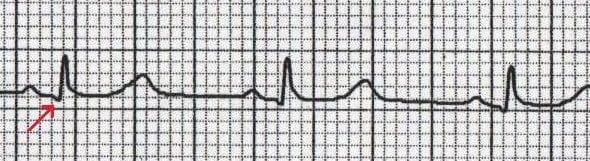

• Small ‘septal’ Q waves are typically seen in the left-sided leads (I, aVL, V5 and V6)

---

Q waves in context

---

Q waves in different leads

• Small Q waves are normal in most leads
• Deeper Q waves (>2 mm) may be seen in leads III and aVR as a normal variant
• Under normal circumstances, Q waves are not seen in the right-sided leads (V1-3)

---

Pathological Q Waves

Q waves are considered pathological if:

• > 40 ms (1 mm) wide
• > 2 mm deep
• > 25% of depth of QRS complex
• Seen in leads V1-3

Pathological Q waves usually indicate current or prior myocardial infarction.

---

Differential Diagnosis

---

Loss of normal Q waves

• The absence of small septal Q waves in leads V5-6 should be considered abnormal.
• Absent Q waves in V5-6 is most commonly due to LBBB.

---

ECG Examples

Example 1

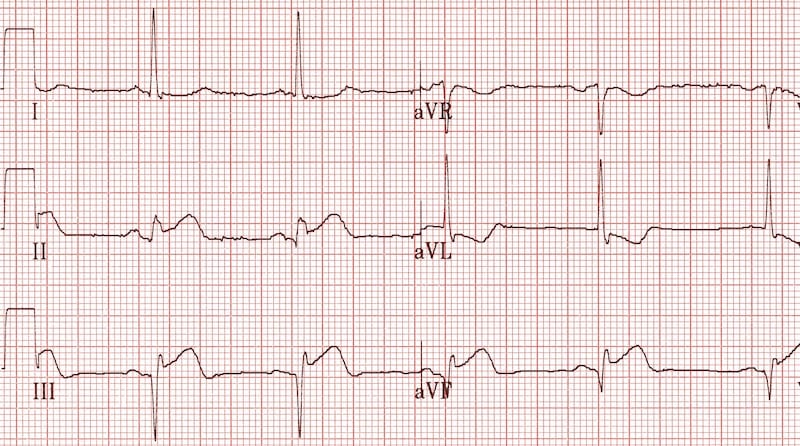

• Inferior Q waves (II, III, aVF) with ST elevation due to acute MI

---

Example 2

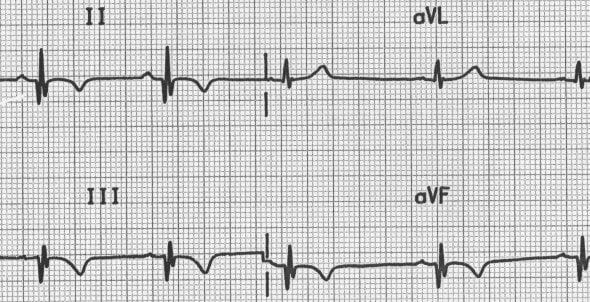

• Inferior Q waves (II, III, aVF) with T-wave inversion due to previous MI

---

Example 3

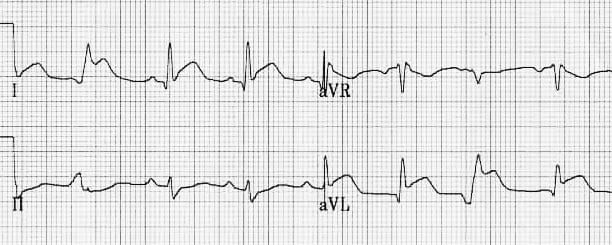

• Lateral Q waves (I, aVL) with ST elevation due to acute MI

---

Example 4

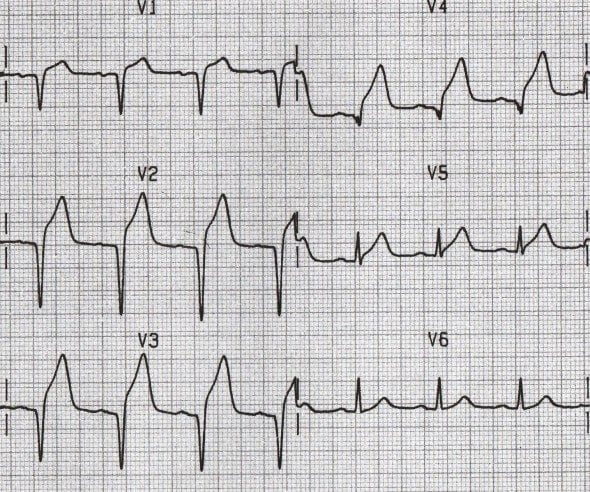

• Anterior Q waves (V1-4) with ST elevation due to acute MI

---

Example 5

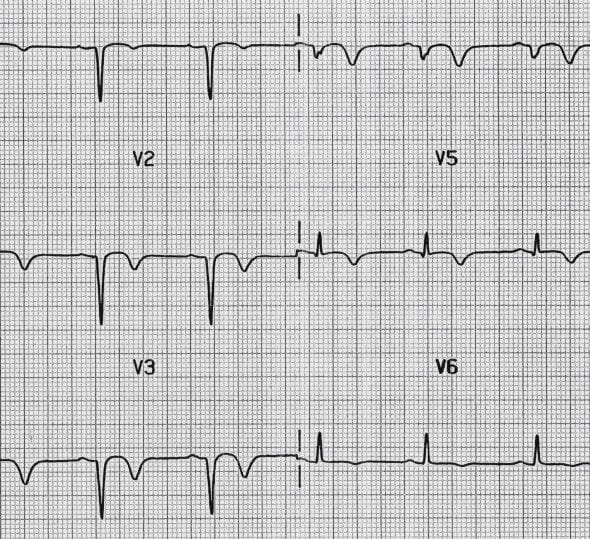

• Anterior Q waves (V1-4) with T-wave inversion due to recent MI

---
