R wave

R wave Overview

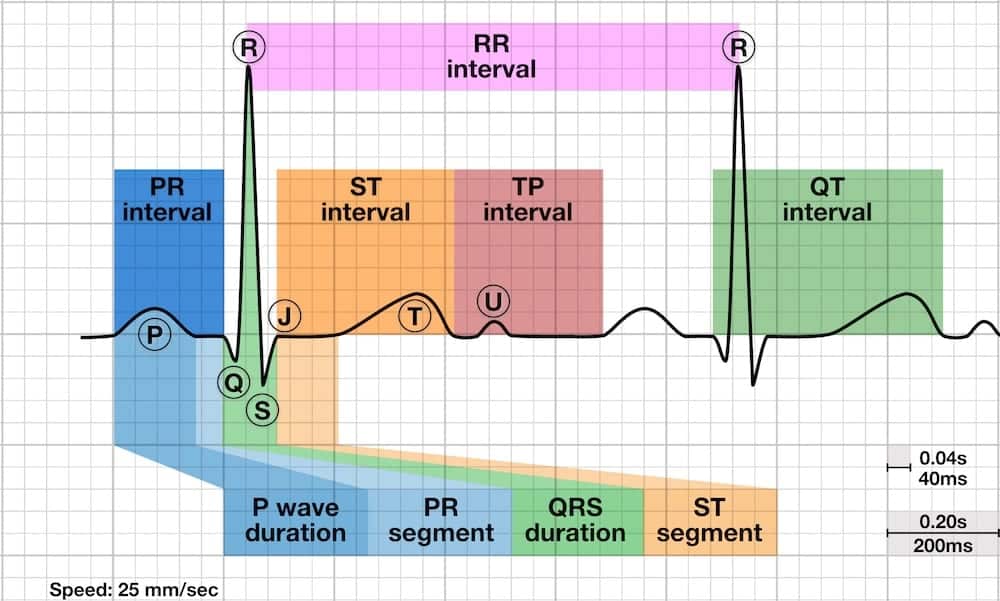

The R wave is the first upward deflection after the P wave. The R wave represents early ventricular depolarisation

Abnormalities of the R wave

There are three key R wave abnormalities:

1. Dominant R wave in V1
2. Dominant R wave in aVR
3. Poor R wave progression

---

1. Dominant R wave in V1

Causes of Dominant R wave in V1

---

Examples of Dominant R wave in V1

Normal paediatric ECG (2 yr old)

---

Right Ventricular Hypertrophy (RVH)

---

Right Bundle Branch Block (RBBB)

---

Posterior MI

---

Wolff-Parkinson-White (WPW) Type A

---

Leads V1 and V3 reversed

---

Muscular dystrophy

---

---

2. Dominant R wave in aVR

---

Examples of Dominant R wave in aVR

Poisoning with sodium-channel blocking drugs

• Causes a characteristic dominant terminal R wave in aVR
• Poisoning with sodium-channel blocking agents is suggested if:
  • R wave height > 3mm
  • R/S ratio > 0.7

---

Dextrocardia

This ECG shows all the classic features of dextrocardia:

• Positive QRS complexes (with upright P and T waves) in aVR
• Negative QRS complexes (with inverted P and T waves) in lead I
• Marked right axis deviation
• Absent R-wave progression in the chest leads (dominant S waves throughout)

---

Left arm/right arm lead reversal

The most common cause of a dominant R wave in aVR is incorrect limb lead placement, with reversal of the left and right arm electrodes. This produces a similar pattern to dextrocardia in the limb leads but with normal R-wave progression in the chest leads. With LA/RA lead reversal:

• Lead I becomes inverted
• Leads aVR and aVL switch places
• Leads II and III switch places

---

Ventricular Tachycardia

---

3. Poor R wave progression

Poor R wave progression is described with an R wave ≤ 3 mm inV3 and is caused by:

• Prior anteroseptal MI
• LVH
• Inaccurate lead placement
• May be a normal variant

Note that absent R wave progression is characteristically seen in dextrocardia (see previous ECG).

---
